Lab Precision Black Granite Calibration Surface plate testing table
Calibration Surface plate testing table are a must for accurate measurement and provide a flat and stable environment for inspection. They are free from temperature distortion and offer an exceptionally sturdy measuring environment due to their thickness and weight.
Measuring on uneven surfaces can give incorrect or inconsistent inspection results, using a granite surface plate can help eliminate this problem.
- Meet DIN876, grade 00 is for inspection room or lab, grade 0 is for workshop.
- Supplied with manufacturers inspection certificate
- Optional accessory: stand for granite surface plate
jack for granite surface plate
Advantages:
1 High precision reliable stability resistant to deform and guaranteed accuracy under normal ambient temperature.
2 No-rust and anticorrosion.
3 Wear resistance long service life.
4 Any cutting or scraching for working surface does not bring about rough edges which might influence its measuring precision.
5 Non magnetization.
6 Glossy surface without sluggishness when the workpieces or tools are moving on it.
Our Calibration Tools Granite Surface Plate refers to the advanced standards of the leading countries, and its flatness tolerance is in accordance with the JB/T 7975-1999 Surface Plate:
Grade 000 =1x(1+d/1000)/μm
Grade 00 =2x(1+d/1000)/μm
Grade 0 =4x(1+d/1000)/μm
Grade 1 =8x(1+d/1000)/μm
(d is the length of the diagonal)
| Specification
Length × Width × Thickness (mm) | Weight (kgs) | Precision Grade (μm) |
| 000 | 00 | 0 | 1 |
| 300 × 200 × 50 | 17 | 1.5 | 3 | 6 | 12 |
| 300 × 300 × 50 | 19 | 1.5 | 3 | 6 | 12 |
| 400 × 300 × 70 | 25 | 1.5 | 3 | 6 | 12 |
| 400 × 400 × 70 | 48 | 2 | 3.5 | 6.5 | 13 |
| 630 × 400 × 100 | 76 | 2 | 3.5 | 7 | 14 |
| 630 × 630 × 100 | 155 | 2 | 4 | 8 | 16 |
| 800 × 500 × 130 | 156 | 2 | 4 | 8 | 16 |
| 1000 × 630 × 130 | 284 | 2.5 | 4.5 | 9 | 18 |
| 1000 × 750 × 150 | 338 | 2.5 | 5 | 9 | 18 |
| 1000 × 1000 × 150 | 450 | 2.5 | 5 | 10 | 20 |
| 1600 × 1000 × 200 | 963 | 3 | 6 | 12 | 24 |
| 2000 × 1000 × 200 | 1200 | 3.5 | 6.5 | 13 | 26 |
| 1600 × 1600 × 300 | 2312 | 3.5 | 6.5 | 13 | 26 |
| 2000 × 1600 × 300 | 2890 | 3.5 | 7 | 14 | 28 |
| 2500 × 1600 × 300 | 3612 | 4 | 8 | 16 | 32 |
| 3000 × 2000 × 500 | 9030 | 4.5 | 9 | 18 | 36 |
| 4000 × 2000 × 500 | 12040 | 5.5 | 11 | 22 | 44 |
| 6000 × 2000 × 700 | 25284 | 7.5 | 15 | 30 | 60 |
Product Tags:
|
|

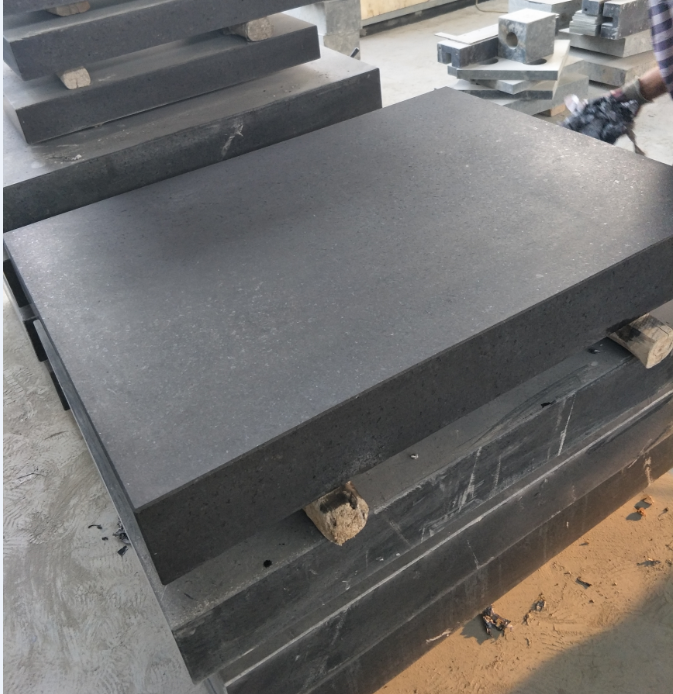

Lab Precision 1600 X 1000 Granite Surface Plate Calibration Black Testing Table Images
|
