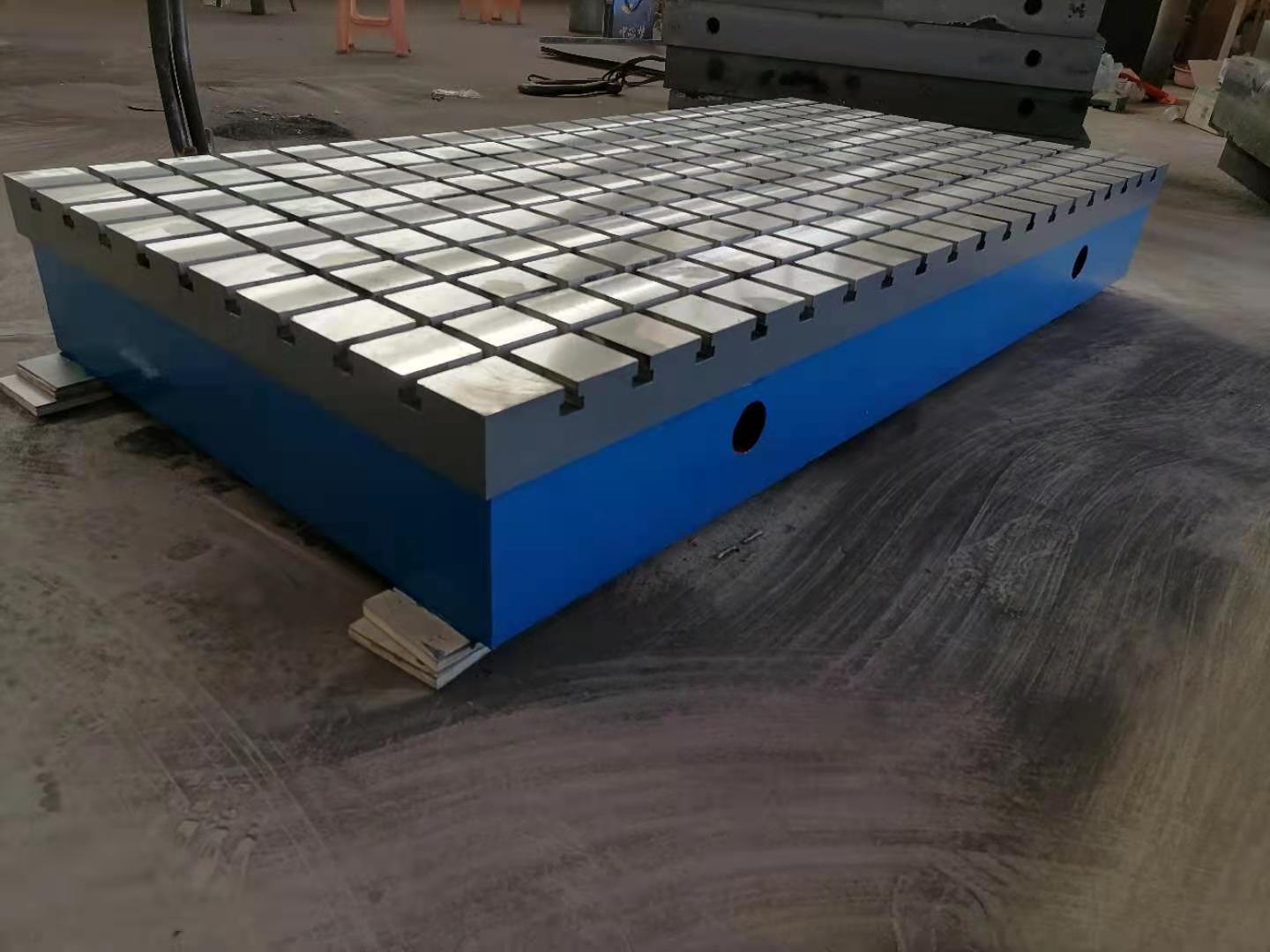

5000 x 2000 mm Cast iron working table with T-slot
Basic Features:
Profiles: Cast iron working table Generally provided with T-slots sizes 14, 18, 22, 28, 36 or 42 mm conforming to IS:2013 / DIN 650 in tolerance from H12 to H7. Holes, square slots, guiding slots or other profiles on top as well as sides may be provided as per requirement of customers.
Stress Relieving: Cast iron working table shall be manufactured with castings duly stress relieved, after rough machining to prevent distortion.
Height: Cast iron working table shall be manufactured in various heights 150, 175, 250, 300, 350, 400, 450, 500mm depending upon application and load carrying capacity Starting from 1 ton/m2 to 150 tons/m2.
Flatness Accuracy: Grade I, II or III as per DIN-876 OR as per IS-10602.
Surface Finish: CNC finish or Hand Scrapped finish can be provided as per requirement.
Installation & Commissioning Accessories: Cast iron working tableshall be provided with suitable Leveling & Anchoring accessories or Floor Stand as per requirement of customer.
Precision: According to the national standards measurement examination regulations execution,
respectively is 1,2,3, fine polish.
| Specification (mm) | Flatness tolerance (um) |
| | | Grade2 | Grade 3 | Finihs plane |
| 1000x750 | | 36 | 90 | |
| 1000x1000 | | 39 | 96 | |
| 1500x1000 | | 48 | 120 | |
| 2000x1000 | | 52 | 129 | |
| 2000x1500 | | 56 | 140 | |
| 2000x2000 | | 60 | 152 | 230 |
| 2500x1500 | | 68 | 168 | 248 |
| 3000x1000 | | | 174 | 248 |
| 3000x2000 | | | 184 | 275 |
| 3000x3000 | | | 210 | 300 |
| 4000x1000 | | | 210 | 300 |
| 4000x2000 | | | 219 | 310 |
| 4000x3000 | | | 240 | 360 |
| 5000x2000 | | | 255 | 375 |
| 5000x3000 | | | 287 | 420 |
| 6000x2000 | | | 293 | 430 |
| 6000x3000 | | | 308 | 460 |
| 8000x2000 | | | 370 | 520 |
| 8000x3000 | | | 382 | 570 |
Installation and adjustment
When used surface plate ,you should first installation debugging,then you can use it . No significance work on surface plate if they aren't properly positioned .Surface plate should setup on level off, firm without shock place .please first put the pad iron down ,then put the surface plate on the pad iron ,removal the wooden case and oil . Measurement with the levelness of the surface plate ,when the surface plate isn't level ,please adjust the pad iron .( In the process of adjusting attention to safety)
Notice for use
1: To the best uniform use of the flat plate throughout, to avoid local grinding concave.
2: Keep the plate clean, prevent be wroned by iron scrap, sand ...
3: Put down workpieces on the plate gently, prevent the flat surface be impacted, once the plate surface hit the workpiece or other objects,repair impact and the convex part immediately.
4: Do not do any hammer work on the surface plate .
5: After use, should be clean it. If long time no use should not be coated with anti rust oil to prevent corrosion.
