High Precision Cast Iron Surface Plates With A Hole In Middle Stable Performance

Brand Name : OEM

Certification : CO, FORM-E

Place of Origin : China

MOQ : 1

Payment Terms : Western Union, T/T

Supply Ability : 10/monthd

Delivery Time : 20days

Packaging Details : wooden

Material : HT250

Name : 1500 x 1500 mm Cast Iron Across T Slot Plate With A Hole In Middle Motor Test Bed

Type : Hollow type

Flatness : 1 grade

size : as clients request

surface finish : hand scrap

Price : Negotiable

Contact Now

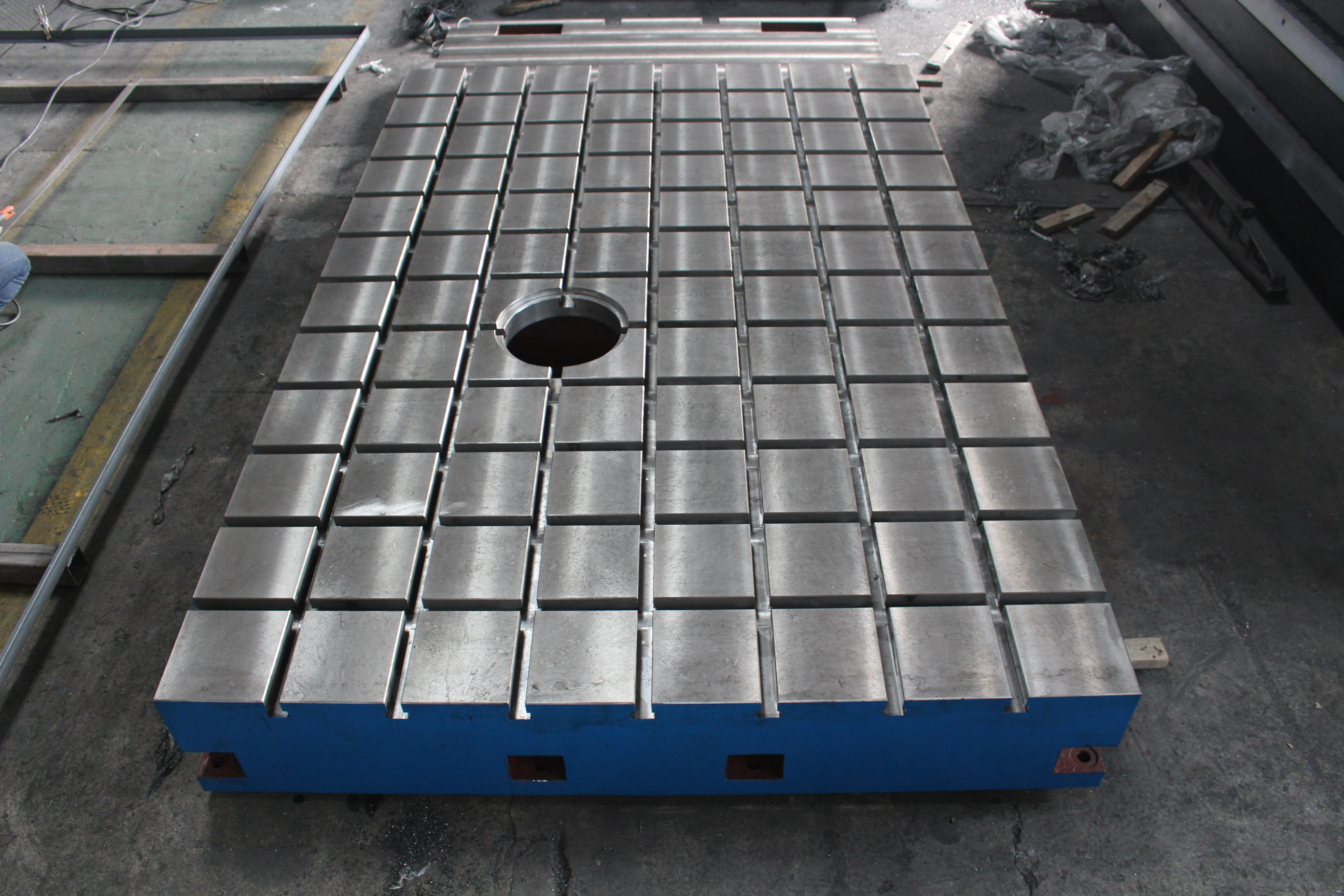

1500 x 1500 mm Cast Iron Across T Slot Plate With A Hole In Middle Motor Test Bed

Cast iron plate, also known as cast iron platform, appearance is basically a box type, such as rectangle, square, round face, materials as HT200-300,using as research process, can be processed on the working plane V, T, u-shaped slot, dovetail groove, long round hole, hole, etc., Used for workpiece, equipment testing, marking, assembling, welding, assembling, plug welding, flat benchmark measuring tool.

Materials and Processing:

(1) The material of our surface plate/table is cast iron HT200-350

(2) Working surface hardness is HB170-240

(3) Low inaccuracy error and good in grinding resistance.

Precision: According to the national standards measurement examination regulations execution,

respectively is 1,2,3, fine polish.

Specification (mm)	Flatness tolerance (um)
	Grade1	Grade2	Grade 3	Finihs plane
400x400	12	24
600x400	14	28
800x500	16	32	80
900x600	16	32	80
1000x750	18	36	90
1000x1000	20	39	96
1500x1000	25	48	120
2000x1000	26	52	129
2000x1500		56	140
2000x2000		60	152	230
2500x1500		68	168	248
3000x1000			174	248
3000x2000			184	275
3000x3000			210	300
4000x1000			210	300
4000x2000			219	310
4000x3000			240	360
5000x2000			255	375
5000x3000			287	420
6000x2000			293	430
6000x3000			308	460
8000x2000			370	520
8000x3000			382	570
